Downlight RD07 8W/20W/40W

APPLICATION SCOPE

Applicable to indoor lighting environments such as ship cabins, shopping malls, schools, hospitals, etc. It is mainly used for lighting applications in passenger rolling boats and cruise ships.

MAIN FEATURES

1.High thermal conductivity aluminum alloy case with radiator.
2.The lampshade is made of heat-resistant PC.
3.Utilizes an international brand LED chip with high luminous efficiency, long life, and environmental protection.
4.Features a wide voltage input range, constant current and constant voltage power supply, constant power output, with open circuit protection, short circuit protection, and other functions.

STANDARDS AND CERTIFICATES

● China Classification Society RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS and its revised notifications
● IEC 60598-1
● IEC 60598-2-2
● IEC 60092-306
● The product has passed CCS type approval from the China Classification Society.

8W Product outlineInstallation element drawing

20W Product outlineInstallation element drawing

40W Product outlineInstallation element drawing

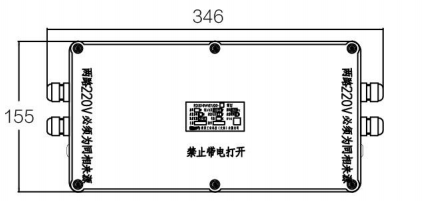

Emergency power supply box:

product-422-201

Remarks: Two different emergency functions, E1 and E4, are implemented. For this size of emergency power supply box, it is required when the lamp has these emergency functions. If the lamp does not have any emergency function (E0), the power supply box is not needed.

LIGHT DISTRIBUTION CURVE

product-297-286

TYPE DESIGNATION

RD	07-	8W	/E4	/D0	-C
Downlight	07 Series	Power	Emergency	Dimming	CCT
		8W	E0:no emergency	D0:not dimmable	C:Cool white
		20W	E1:Battery emergency	D1:Power adjustable	N:Neutral white
		40W	E2:DC24V emergency	D2:adjustable powerand color temperature	W:Warm white
			E3:AC emergency
			E4: Additional emergency

TECHNICAL PARAMETERS

Product name	Down Light
Power	8/20/40W
Luminous flux	800/2000/4000lm
Efficiency	≥100lm/W
Voltage	AC100-277V 50Hz/60Hz
PF	≥0.9
CCT	Cool white 5500~6500K	Neutral white 4000~4500K	Warm white 3000~3500K
Protection level	IP22/IP44
Temperature	-25℃~+55℃
Battery emergency function (E1) Battery category (nickel chromium battery)	Emergency Power 4W+5% Emergency time >180min
DC24V emergency(E2)	Emergency Power 4W±5% Emergency Voltage DC18-36V
AC emergency(E3)	Emergency Power 4W±5% Emergency Voltage AC100-277V
Additional emergency( E4 )	Emergency Power 4W±5% Emergency time >180min
